International Audio Laboratories Erlangen

Data-Driven Solo Voice Enhancement for Jazz Music Retrieval

This is the accompanying website for the paper:

1. Stefan Balke, Christian Dittmar, Jakob Abeßer, and Meinard Müller
   Data-Driven Solo Voice Enhancement for Jazz Music Retrieval
   In Proceedings of the IEEE International Conference on Acoustics, Speech, and Signal Processing (ICASSP): 196–200, 2017. Bibtex PDF Demo Presentation

   @inproceedings{BalkeDAM17_SoloVoiceEnhancement_ICASSP,
   author = {Stefan Balke and Christian Dittmar and Jakob Abe{\ss}er and Meinard M{\"u}ller},
   title = {Data-Driven Solo Voice Enhancement for Jazz Music Retrieval},
   booktitle = {Proceedings of the {IEEE} International Conference on Acoustics, Speech, and Signal Processing ({ICASSP})},
   pages = {196--200},
   location = {New Orleans, USA},
   year = {2017},
   url-demo={https://www.audiolabs-erlangen.de/resources/MIR/2017-ICASSP-SoloVoiceEnhancement},
   url-pdf = {2017_BalkeDAM_SoloVoiceEnhancement_ICASSP.pdf},
   url-presentation = {2017_BalkeDAM_SoloVoiceEnhancement_ICASSP_presentation.pdf}
   }

Abstract

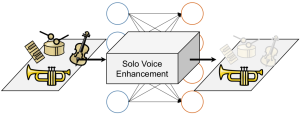

Retrieving short monophonic queries in music recordings is a challenging research problem in Music Information Retrieval (MIR). In jazz music, given a solo transcription, one retrieval task is to find the corresponding (potentially polyphonic) recording in a music collection. Many conventional systems approach such retrieval tasks by first extracting the predominant F0-trajectory from the recording, then quantizing the extracted trajectory to musical pitches and finally comparing the resulting pitch sequence to the monophonic query. In this paper, we introduce a data-driven approach that avoids the hard decisions involved in conventional approaches: Given pairs of time-frequency (TF) representations of full music recordings and TF representations of solo transcriptions, we use a DNN-based approach to learn a mapping for transforming a "polyphonic" TF representation into a "monophonic" TF representation. This transform can be considered as a kind of solo voice enhancement. We evaluate our approach within a jazz solo retrieval scenario and compare it to a state-of-the-art method for predominant melody extraction.

Data and Trained Models

Our used data is available upon request (stefan.balke@audiolabs-erlangen.de, 10 folds, see paper for details, ca. 3 GB, contains compressed numpy arrays).

On each fold, we train a DNN using keras (v. 1.0.5).

Model specifications, trained weights and biases are available for download here (ca. 1 MB, h5 and json files).

Examples

Please activate the player to start playback. Use the slider to mix between the audio recording and the input processed output features for the DNN.

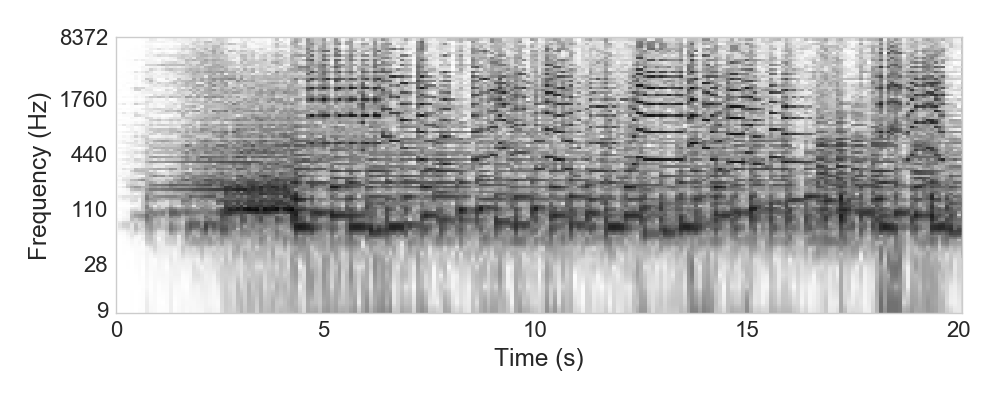

Example: Clifford Brown - Jordu

Activate

• Play
• Stop
• Repeat
• --:--:--:--- / --:--:--:---

Crossfade

Audio RecordingSonification

---

• Recording + DNN Input
  • Solo
• Recording + DNN Output
  • Solo

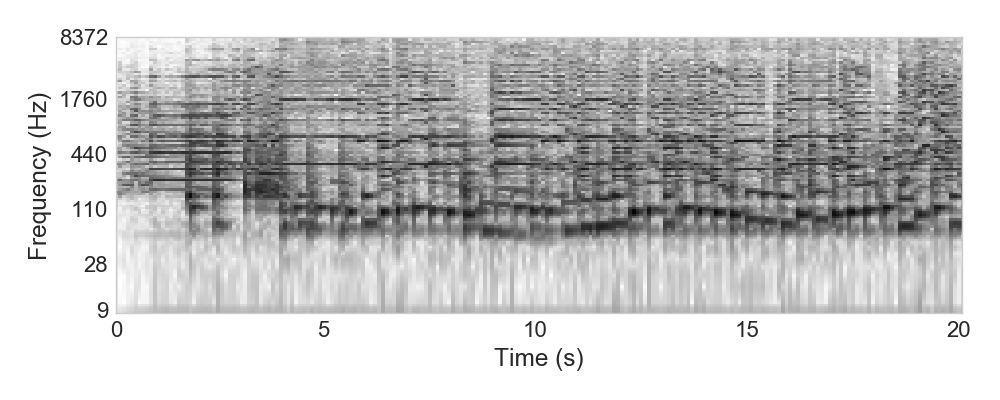

Example: John Coltrane - Blue Train

Activate

• Play
• Stop
• Repeat
• --:--:--:--- / --:--:--:---

Crossfade

Audio RecordingSonification

---

• Recording + DNN Input
  • Solo
• Recording + DNN Output
  • Solo

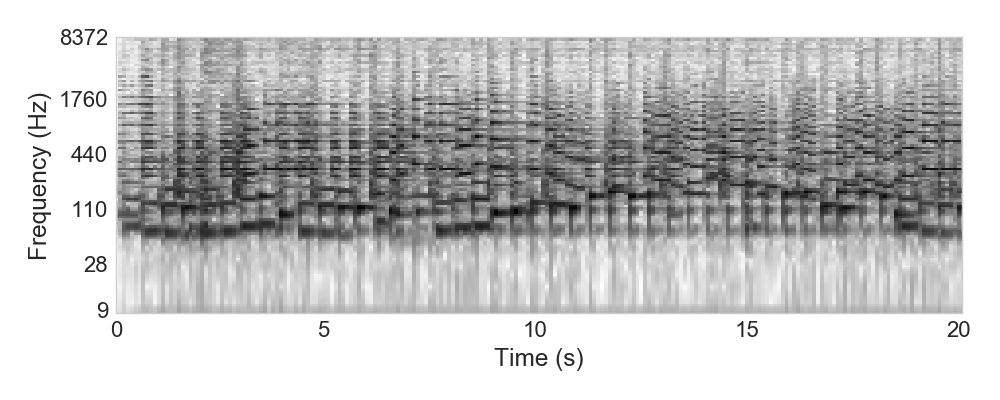

Example: Curtis Fuller - Blue Train

Activate

• Play
• Stop
• Repeat
• --:--:--:--- / --:--:--:---

Crossfade

Audio RecordingSonification

---

• Recording + DNN Input
  • Solo
• Recording + DNN Output
  • Solo

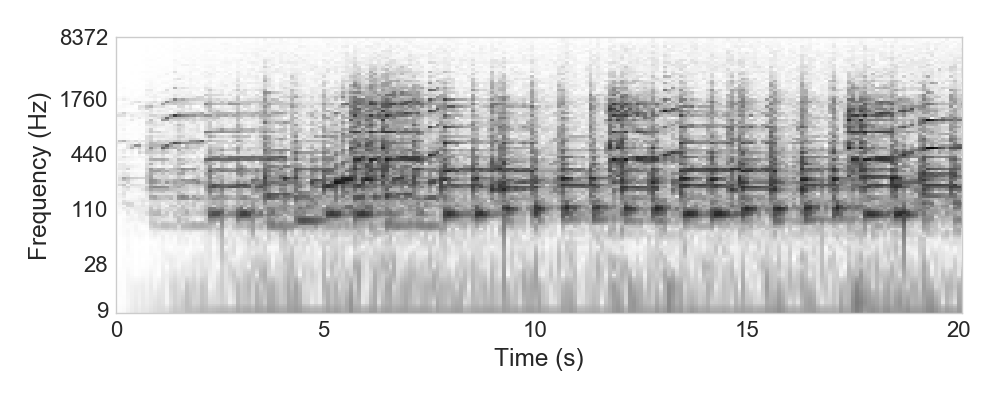

Example: Sidney Bechet - Summertime

Activate

• Play
• Stop
• Repeat
• --:--:--:--- / --:--:--:---

Crossfade

Audio RecordingSonification

---

• Recording + DNN Input
  • Solo
• Recording + DNN Output
  • Solo
